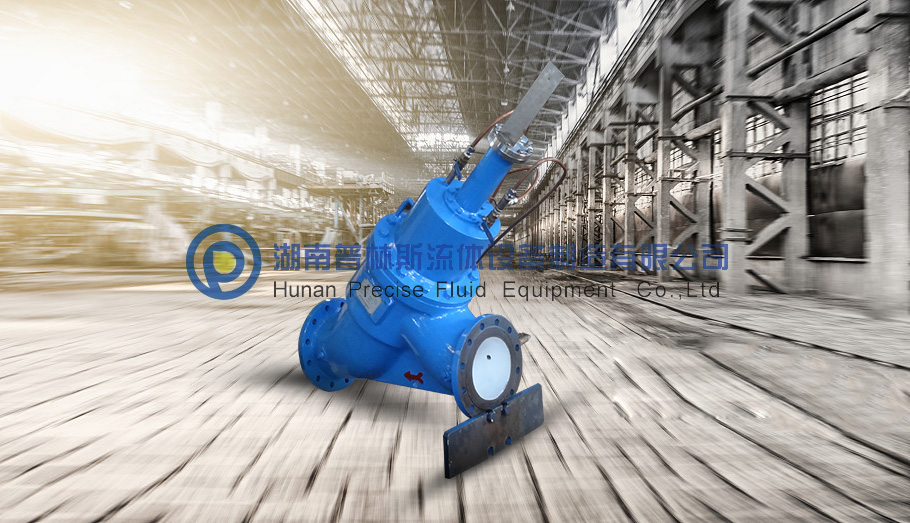

Product Introduction

Nominal diameter:80 ~ 400 mm

Nominal pressure:0.6 ~ 10 MPa

Flow capacity:0 ~ 4280 m³/ h

Technical Characteristics:

1.Y-Patten Inline layout

2.Excellent anti-cavitation performance

3.Large decompression ratio of 20:1

4.The linear adjustment

5.Flow adjustment and pressure adjustment

6.High-precision adjustment valves

Driving mode: Pilot control (water pressure), manual,electrical, hydraulic

Typical applications: Precision adjustment control of pipeline pressure and flow. Technology of hydroturbine for energy dissipation and decompression. Ecological discharge control of bypass unit

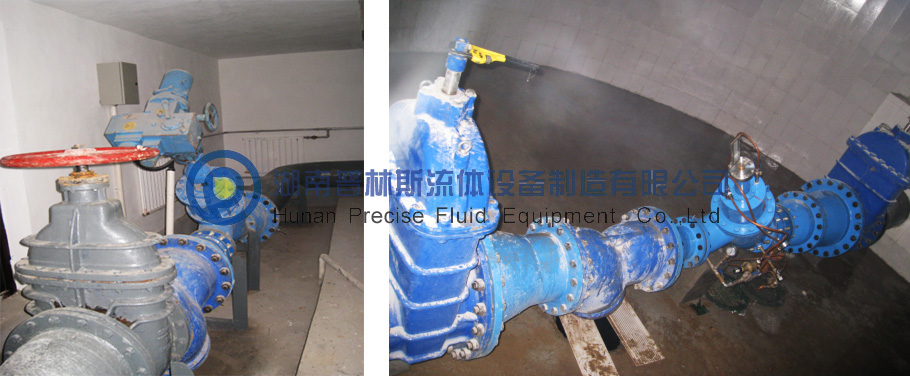

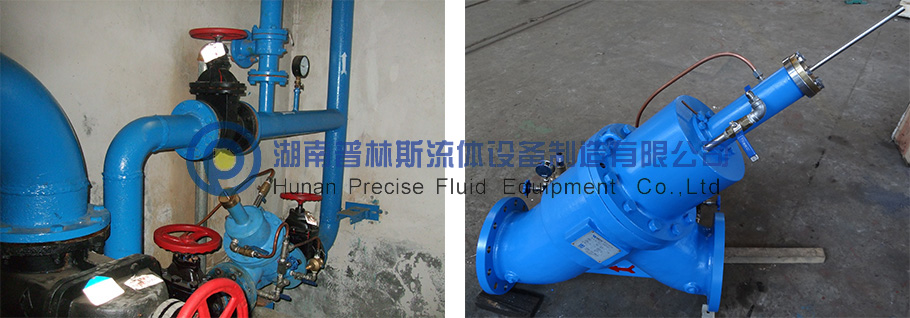

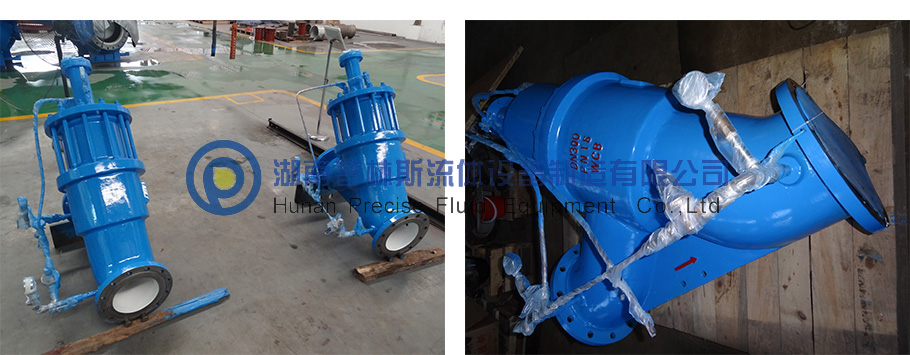

Typical Application

Pressure reducing valve--- Precise control andregulation of pipeline pressure

Flow adjusting valve--- Precise control and regulation of pipeline flow

Energy dissipation valve--- Energy dissipation and reducing pressure by the technology of hydroturbine

Discharge valve--- Eco-discharge control of bypass unit

Holding/Relief pressure valve--- Holding/Relief pressure of pipeline

Typical Structure

B05 series type Y-Pattern sleeve valve is mainly made up of the valve body, sleeve, large piston cylinder, large piston, driving device, indication rod,seal seat, sealing ring etc.

Principle

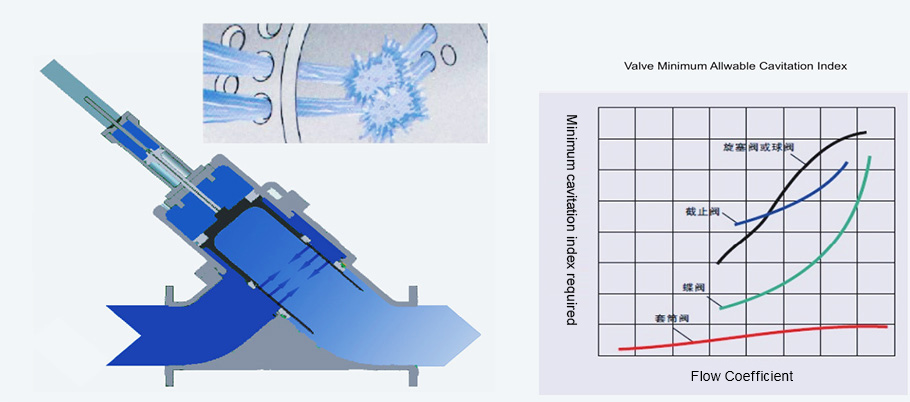

B05 series type Y-pattern sleeve valve is arranged a number of professionally-designed jet on the stainless steel sleeve, the valve actuator drives sleeve to slide automatically according to working conditions, then the valve's opening and the amount of jet changes simultaneously, so that the real-time accurate control and linear adjustment of the pressure or flow of pipeline could be available. The special designed and processed jet, with a large emission coefficient, makes the sprayed water collision happpened at center of pipe away from the valve wall , so that the excellent bility of anti-cavitation and extremely long use age could be possible.

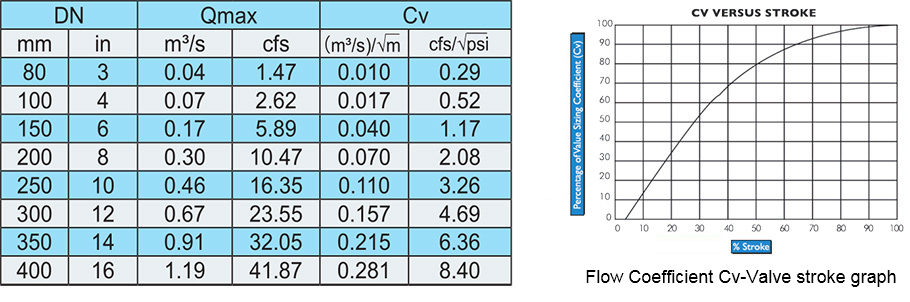

Hydraulic Parameter Table

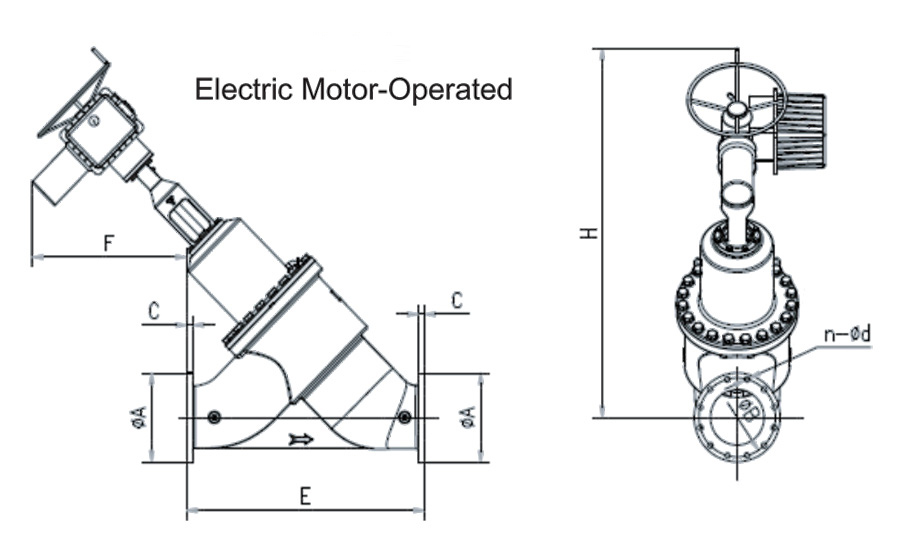

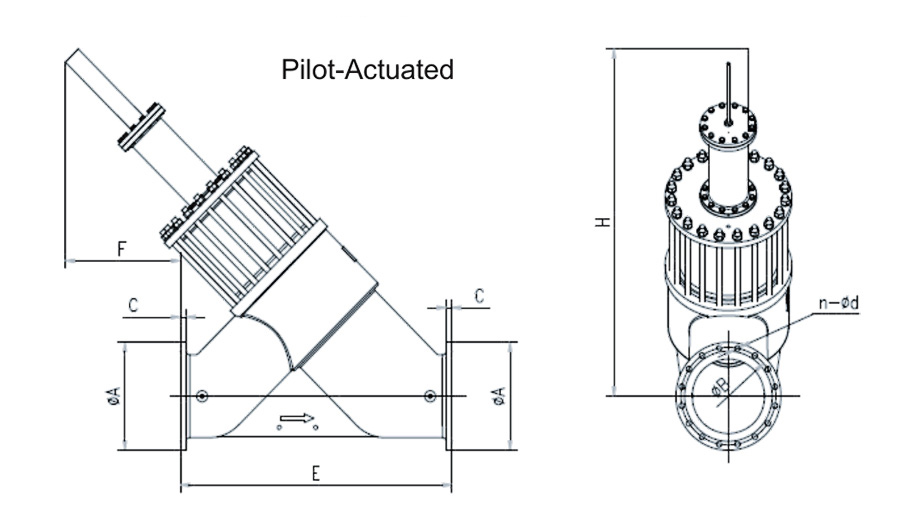

Overall Dimension

Note: The dimension sheet is as result of reference and different with various function.
